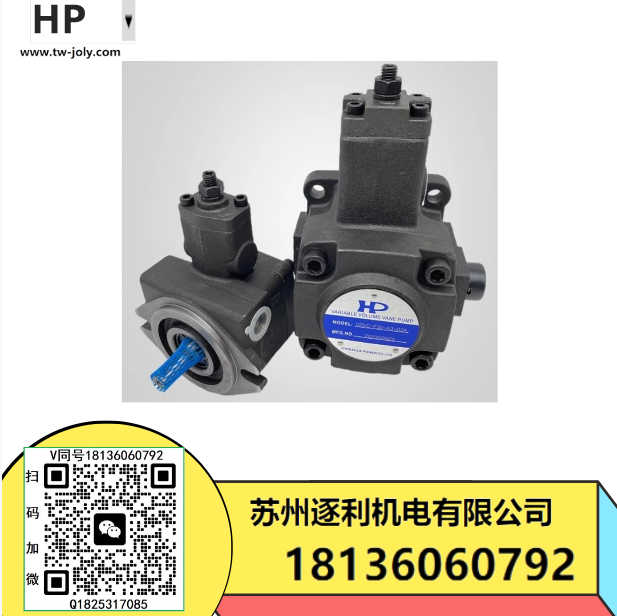

HP變量葉片泵MVPVC-F20/F12/F30/F15/F40-A4/A3/A2/1-03A

淺談液壓系統比例閥

現在液壓系統的比例換向閥基本用的都是電-液比例複合控制。今天跟大家簡單介紹一下。

首先，比例閥必須有一個配套的放大器，它接受來自于計算機，或者PLC，或者電位器（滑動變阻器）的控制信號，把0-20毫安微弱的信號放大到0-800毫安。計算機的信號太弱了。

然后，放大器把放大的信號傳送到電磁閥，電磁閥依據傳來的信號大小，克服彈簧力，調節推桿的行程，輸出流量大約1升/分鍾,壓力隨信號變化的控制油。

再后，控制油到達主閥芯的兩端，依據不同的壓力，推動閥芯移動相應的行程，因爲閥芯本身有錐度的臺階，與閥體組合，不同的行程得到不同的過流面積，再入口壓力穩定的情況下，得到不同的流量。最終實現比例功能。

比例閥是由計算機（或其他），放大器，比例電磁鐵，錐度臺階的閥芯，入口壓力補償閥（單聯可以不要），梭閥，內置卸荷閥（把多馀的流量送回油箱）等構成的一個完整的體系。才能真正實現比例功能。
